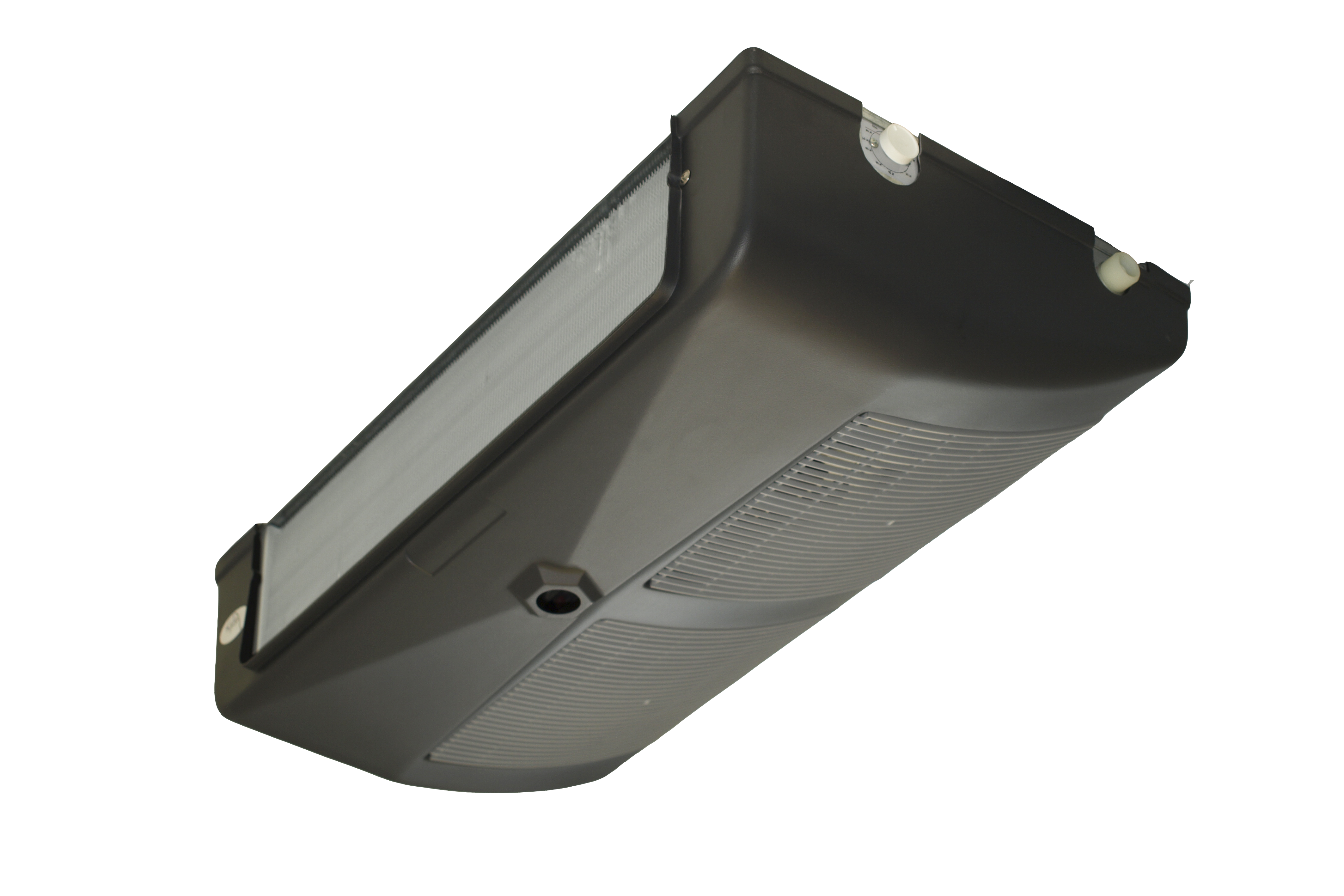

The SPC-EVPL
The EVPL split system Genesis and Vintage under-ceiling evaporators meet all the requirements for installing an air conditioner (distance between the unit and the evaporator, small dimensions, acoustic constraints etc…). The evaporator can be positioned either horizontally under the ceiling to leave as much space as possible for the bottles on the walls, or vertically with the KPM option if required by cellar dimensions.
Maximum volume of cellar in m3*
(*according to model)
Wireless remote control
Faultless regulation… and a wireless system developed exclusively by Friax, avoiding any cabling constraints
Vintage
This is the most complete solution. It air conditions, heats and humidifies your cellar
Condensation unit
This encased air or water-based condensation unit manages the system’s cooling production
The Ceiling Split Solution

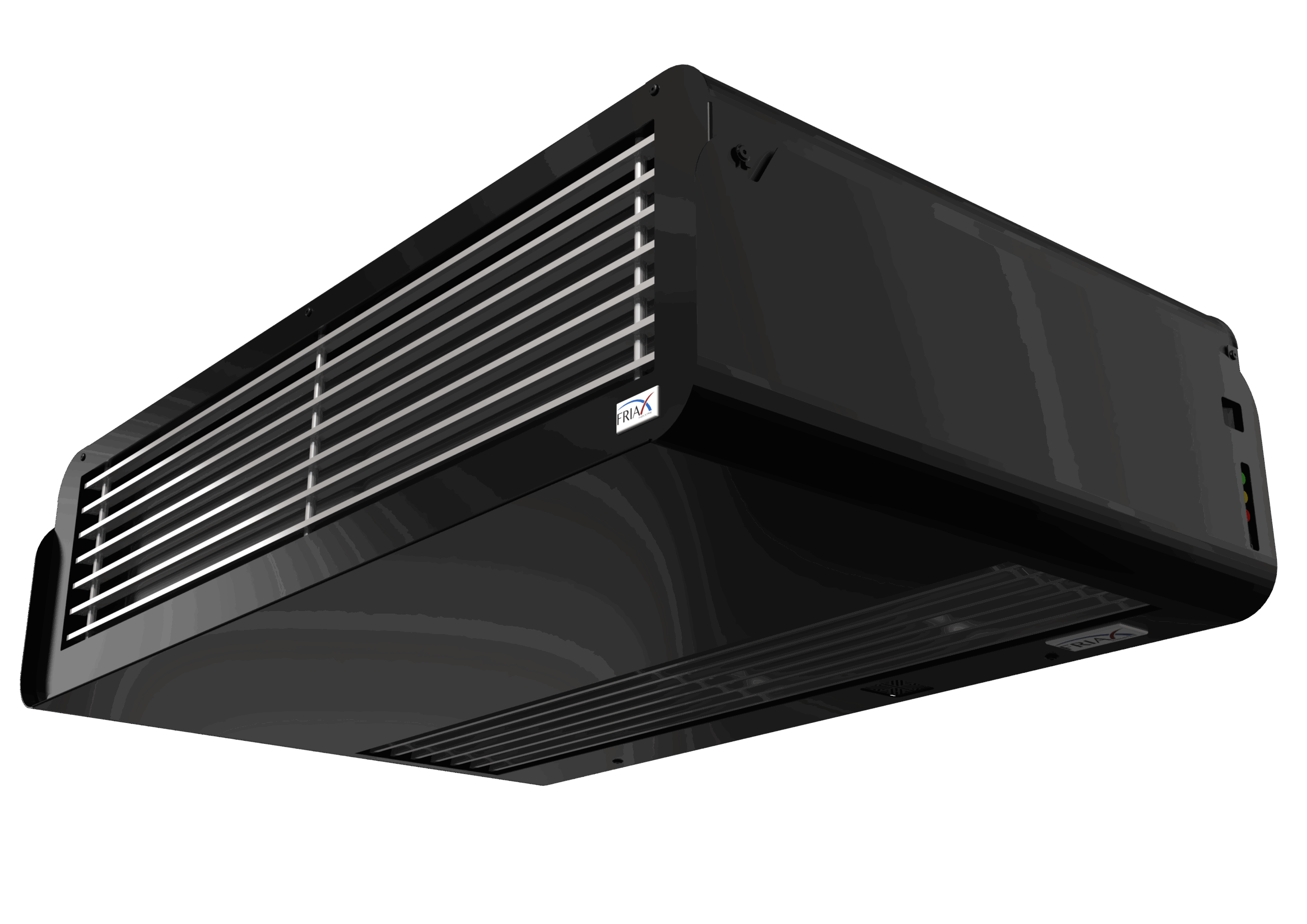

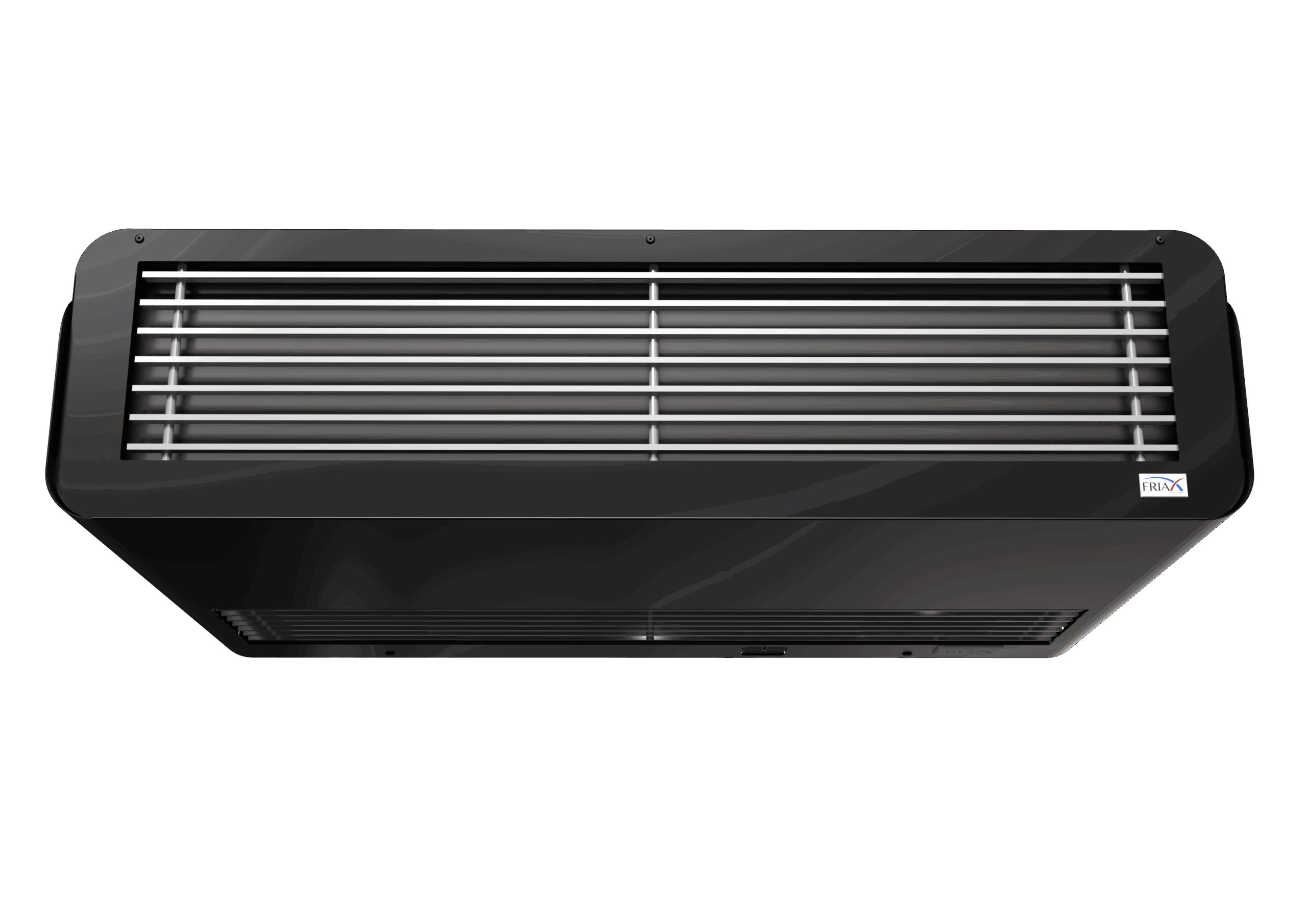

EVPL evaporators are easily integrated into the ceiling of all cellars. The wide power range makes it possible to air-condition large volumes without ever compromising user comfort.
Friax split systems are based on the most modern and energy-efficient technologies.
Wireless remote control
Included with every products
According to the type of installation chosen, it is not always easy to reach the regulator on a cellar air conditioner. Using Friax’s RSF remote control you can install the system further away without constraints. The signal passes through walls. The remote control does not necessarily have to be installed in the cellar room. In this way you can check your temperature and hygrometry without having to go down to the cellar.
WineSupervisor 3
sold separately
WineSupervisor is the connected wine cellar solution that allows the user to follow the operation of his cellar in real time and to be alerted in the event of an anomaly. The recording of temperature curves makes it possible to keep the traceability of the cellar.
Find out more 😉 : winesupervisor.fr
Systems
The Genesis and Vintage systems define the level of equipment of the devices in the Friax range.
Genesis evaporator
cooling only- Under-ceiling assembly in the cellar
- Aluminium glossed RAL7024 body for 30 and 48 models and recyclable ABS RAL7024 for 82 to 230 models
- Flare cooling connection
- Stainless steel thermostatic expansion valve
- CWR (Cold water recycling) hygrometry stabilisation
- ABS connection box
- RSF wireless remote control
- Display showing temperature and the system’s different functions
- PDO Pump Down solenoid valve on 170 and 230 models
- Pre-charged with nitrogen on delivery
Evaporateur Vintage
Cooling - Heating - Humidification- Under-ceiling assembly in the cellar
- Aluminium glossed RAL7024 body for 30 and 48 models and recyclable ABS RAL7024 for 82 to 230 models
- Flare cooling connection
- Stainless steel thermostatic expansion valve
- CWR (Cold water recycling) hygrometry stabilisation
- ABS connection box
- RSF wireless remote control
- Display showing temperature and the system’s different functions
- PDO Pump Down solenoid valve on 170 and 230 models
- Pre-charged with nitrogen on delivery
- KCH integrated heating
- KHGR% integrated humidifier
Genesis ACCESSORIES
- KPM Wall mounting kit for models 30 to 122
- BNS Low sound level kit for condensation units
Vintage ACCESSORIES
- KPM Wall mounting kit for models 30 to 122
- BNS Low sound level kit for condensation units
- KLPWSECU Secure Pressure Relief kit for humidifier
Evaporator | Vintage
The most complete solution. On the EVPL, it performs the functions of air conditioning, heating and humidification of the cellar. Optimized for cellars that are too dry, these models are equipped with the HGR% system. allows to restore to the too dry cellars the humidity which is appropriate for the great vintages. It incorporates a humidifier controlled by a hygrostatic probe mounted in the evaporator, precisely managing the humidity of the cellar. The water connection can be made with flexible connections. The use of a KLPWSECU kit will facilitate and secure the connection on the water.
The evaporator is positioned either horizontally on the ceiling to leave a maximum of space for the bottles on the walls, or vertically equipped with the KPM option when the environment of the cellar requires it.

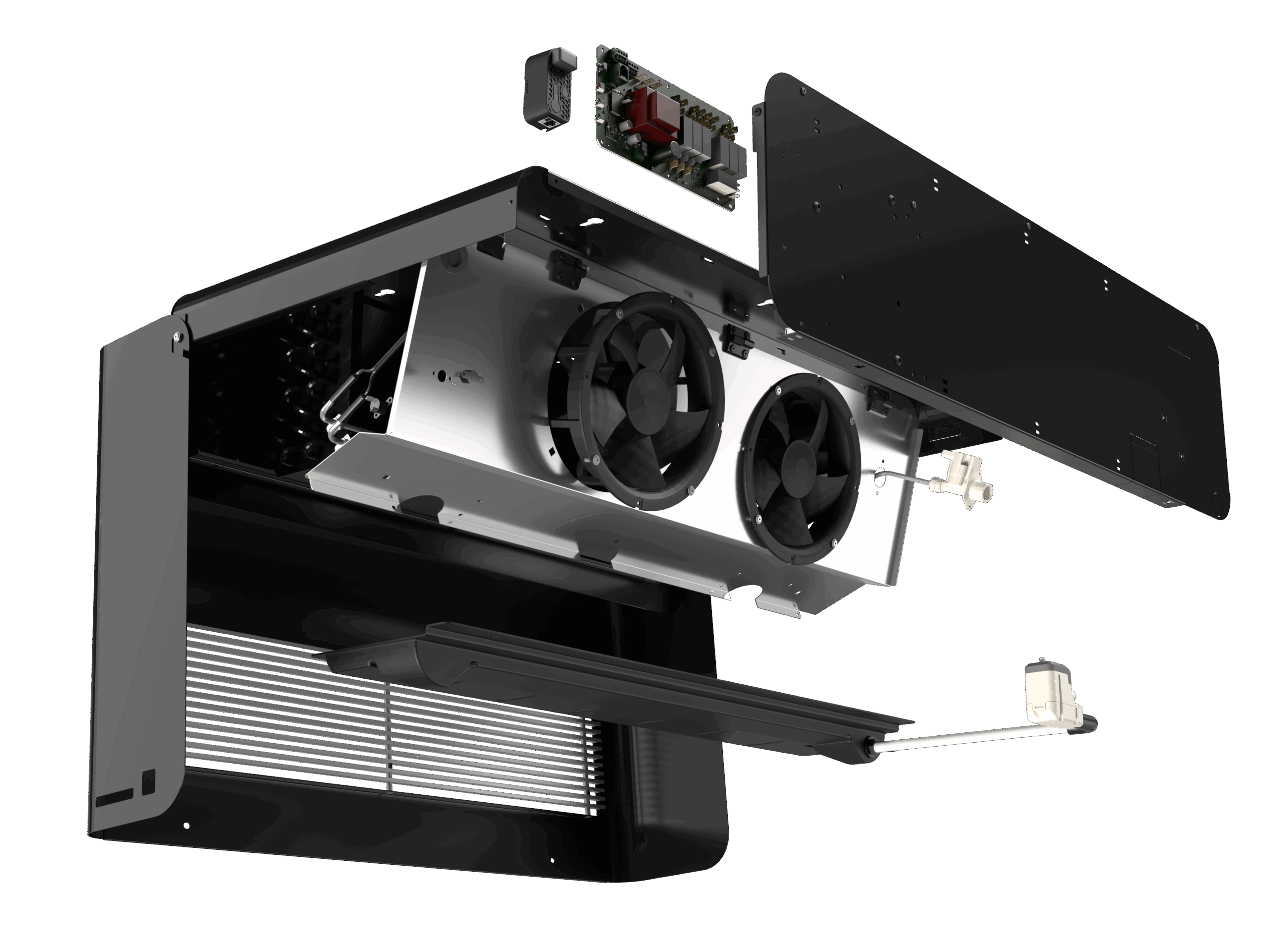

The evaporator in detail
- Under-ceiling assembly in the cellar
- Aluminium glossed RAL7024 body for 30 and 48 models and recyclable ABS RAL7024 for 82 to 230 models
- Flare cooling connection
- Stainless steel thermostatic expansion valve
- CWR (Cold water recycling) hygrometry stabilisation
- ABS connection box
- RSF wireless remote control
- Display showing temperature and the system’s different functions
- PDO Pump Down solenoid valve on 170 and 230 models
- Pre-charged with nitrogen on delivery
- KCH integrated heating
- KHGR% integrated humidifier
Vintage accessories
- KPM Wall mounting kit for models 30 to 122
- BNS Low sound level kit for condensation units
- KLPWSECU Secure Pressure Relief kit for humidifier
Condensation units
House, apartment, commercial premises, garage, ... A solution for each installation of wine cellar air conditioner.
Friax designs and produces its air conditioners in France in order to incorporate the best technologies. Specially developed for the wine cellar, control of regulation and sustainability are the central elements of our R&D.
To find out the size / power of appliance required for your cellar, go to the selection tool.
Air cooling units
GCH | Size 30 to 122
Units of size 30 to 122 are equipped with Condensation Unit GCH. Aesthetic, modern and practical groups, for an easy and discreet installation.
----
The GCH units consist of a frame in galvanized sheet metal and a bodywork coated with two-tone paint intended for outdoor installation.
The use of a micro-channel coil and an electronically commutated (EC) axial fan driven by the split regulation makes it possible to optimize the operation of the refrigeration system in summer and winter.
They are equipped with a tank, a liquid line with dehydrator and sight glass. Flare valves are provided for the refrigeration connection.
The safety of the group is ensured by high and low pressure cartridge pressure switches. The KPC condensation temperature control allows the correct operation of the refrigeration system in summer and winter.
The compressor receives a regulated RC crankcase heater to ensure its protection when the Friax split works in heating mode. The electrical connection is made on a waterproof electrical box. Condensing units are pre-charged with refrigerant.
Access to the electrical part is facilitated thanks to the gate located on the side of the device.
The hinged cover simplifies commissioning and maintenance operations.
The acoustic insulation of the group can be reinforced with a BNS kit.
GC | Size 170 to 230
Size 170 to 230 air-cooled splits are equipped with GC units. Powerful, durable and robust groups, for a reliable and maintainable installation.
----
GC units consist of a frame in galvanized sheet metal and a body coated with light gray EPOXY paint (RAL7035) intended for outdoor installation.
They are equipped with a tank, a liquid line with dehydrator and sight glass. Flare valves are provided for the refrigeration connection.
The safety of the group is ensured by high and low pressure cartridge pressure switches. A KPC condensation pressure control allows the correct operation of the refrigeration system in summer and winter.
The compressor receives an RC regulated crankcase heater to ensure its protection when the Friax split works in heating mode. The electrical connection is made on a waterproof electrical box. Condensing units are pre-charged with refrigerant.
GC units are supplied with anti-vibration mounts and a wall bracket.
The acoustic insulation of the group can be reinforced with a BNS kit.
Water cooling units
W | Size 30 to 230
Size 30 to 230 water-cooled splits are fitted with W units.
----
The cased water condensing units of Friax cellar air conditioning splits are equipped with a galvanized sheet metal frame incorporating the Plug & Lock support as well as anti-vibration mounts. The bodywork is coated with a baked epoxy paint in light gray color (RAL7035).
The groups are equipped with a liquid line with dehydrator and sight glass. The safety of the group is ensured by high and low pressure switches with HBP cartridge. Condensing pressure regulation is provided by a VEP pressostatic water valve. It ensures the proper functioning of the refrigeration system in summer and winter.
The electrical connection is made on a waterproof electrical box.
Condensing units are pre-charged with refrigerant.
|
SPC… |
30 | 48 | 82 | 122 | 170 | 230 | |
| Cooling capacity |
W |
780 | 1100 | 1550 | 2200 | 2900 | 3500 |
| Heating capacity* |
W |
850 | 850 | 850 | 1000 | 1600 | 2000 |
| Electrical characteristics |
SPC… |
30 | 48 | 82 | 122 | 170 | 230 |
| Voltage |
50Hz |
230 V/1+T | 230 V/1+T | 230 V/1+T | 230 V/1+T | 230 V/1+T | 230 V/1+T |
| Electrical current requirement |
A max |
2.6 | 3.3 | 4.5 | 6.5 | 7.8 | 10.4 |
| Condensation unit |
SPC… |
30 | 48 | 82 | 122 | 170 | 230 |
| Air flow |
m3/h |
405 | 510 | 1130 | 980 | 1700 | 1700 |
| Sound pressure level 5 m away without BNS (noise reduction system) |
db |
40 | 44 | 44 | 44 | 51 | 51 |
| Sound pressure level 5 m away with BNS | db | 37 | 41 | 41 | 41 | 48 | 48 |
| Sound pressure level 5 m away W unit | db | 37 | 40 | 40 | 40 | 47 | 47 |
| Gas connection suction (Flare) | Φ | 3/8″ | 3/8″ | 3/8″ | 1/2″ | 5/8″ | 5/8″ |
| Gas connection liquid line (Flare) | Φ | 1/4″ | 1/4″ | 1/4″ | 1/4″ | 3/8″ | 3/8″ |
| Water connection on W | Φ | 2 x 1/2″ M | 2 x 1/2″ M | 2 x 1/2″ M | 2 x 1/2″ M | 2 x 1/2″ M | 2 x 1/2″ M |
| Net weight |
Kg |
36 | 38 | 54 | 57 | 63 | 63 |
| Body colour | RAL7035 | RAL7035 | RAL7035 | RAL7035 | RAL7035 | RAL7035 | |
| Refrigerant | R134A | R134A | R452A | R452A | R452A | R452A | |
| Evaporator | SPC… | 30 | 48 | 82 | 122 | 170 | 230 |
| Ventilator | Nb | 1 x 200 | 2 x 200 | 2 x 200 | 2 x 200 | 3 x 200 | 4 x 200 |
| Air flow | m3/h | 280 | 590 | 650 | 580 | 870 | 1160 |
| Gas connection suction (Flare) | Φ | 3/8″ | 3/8″ | 3/8″ | 1/2″ | 5/8″ | 5/8″ |
| Gas connection liquid line (Flare) | Φ | 1/4″ | 1/4″ | 1/4″ | 1/4″ | 3/8″ | 3/8″ |
| Net weight | Kg | 11.5 | 13 | 12.5 | 13.5 | 18 | 23 |
| Body colour | Anthracite | Anthracite | Anthracite | Anthracite | Blanc | Blanc |
*on Vintage system
